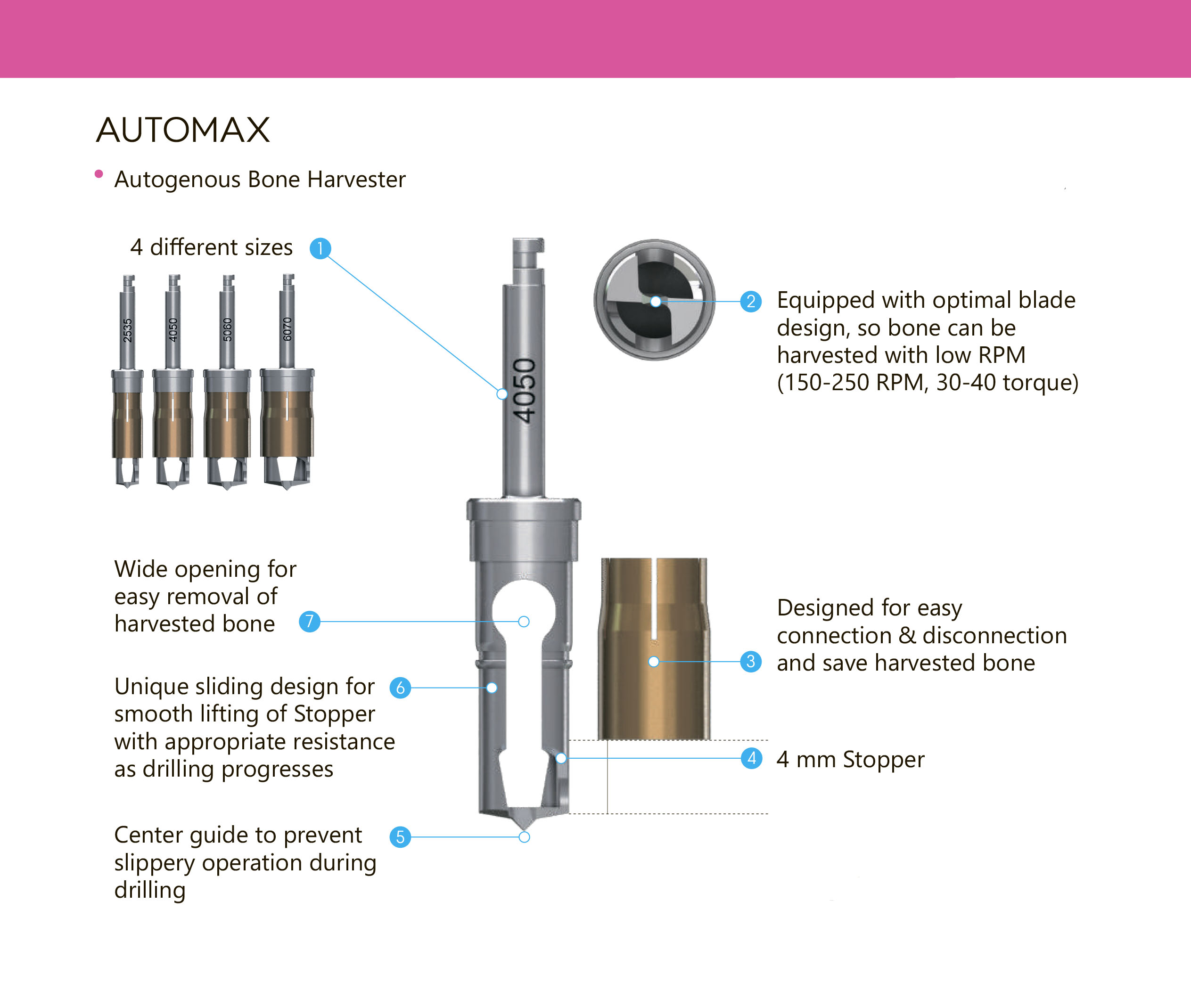

Auto-Max bone harvester

Auto-Max – bone harvester for a taking auto-bone

Does not require additional tools
up to 0.5 cm³ of auto-bone in one movement of the tool

How to use

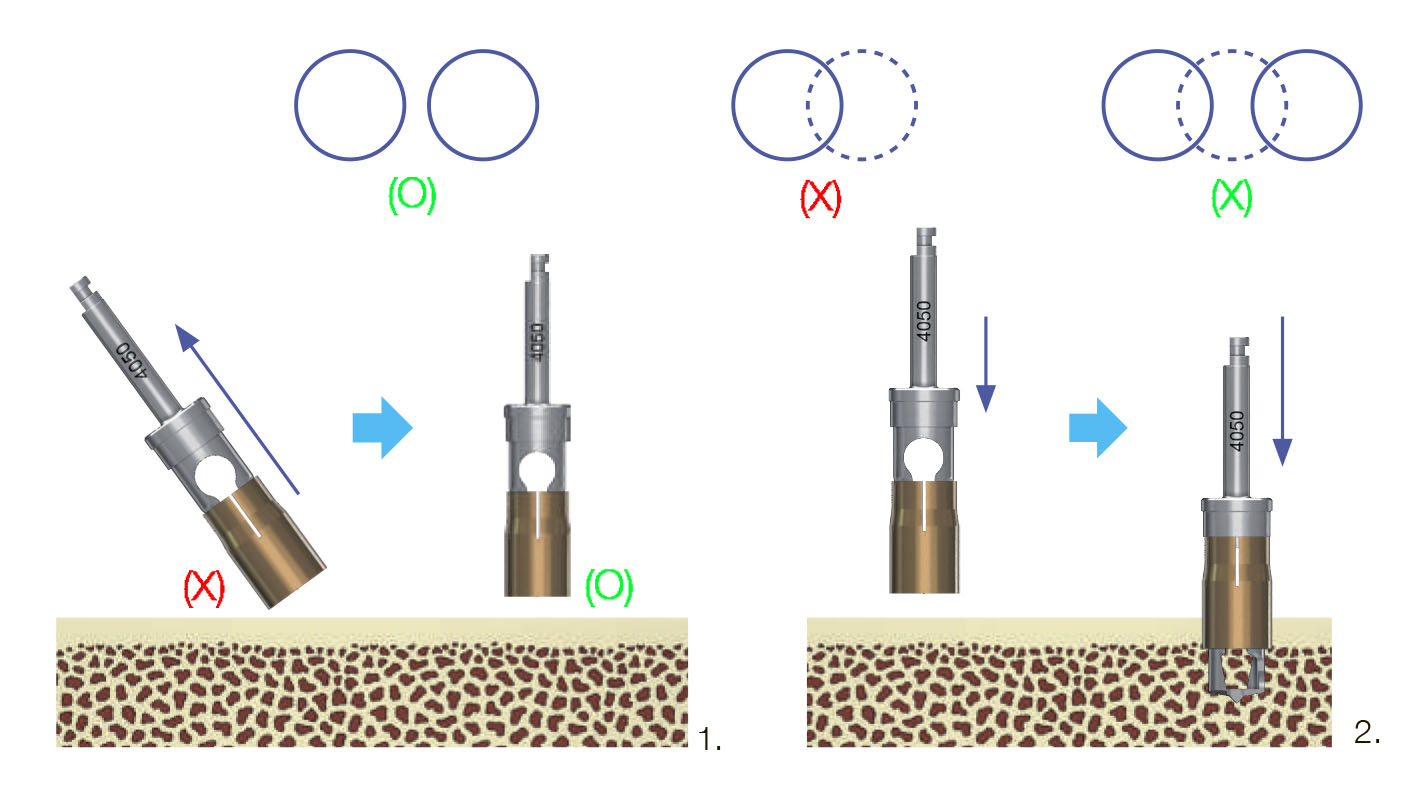

1. Connect an Auto-Max to the handpiece and position the stopper on the Auto-Max
2. The Auto-Max should meet the bone surface perpendicularly. Press the handpiece to fix
   the sharp point of the drill on the bone, and start drilling at about 300~500 rpm with copious
   irrigation
3. Do not pump during harvest. Pumping may scatter the harvested bone
4. The Auto-Max will automatically stop ped at bone depth of 4mm
5. Disconnect the stopper from Auto-Max and collect particulated autogenous bone in a
   sterilized tray.  Repeat steps 1~5 until the desired volume of bone is obtained
6. Bone should be harvested from a new site each time, avoiding overlap with other harvest sites

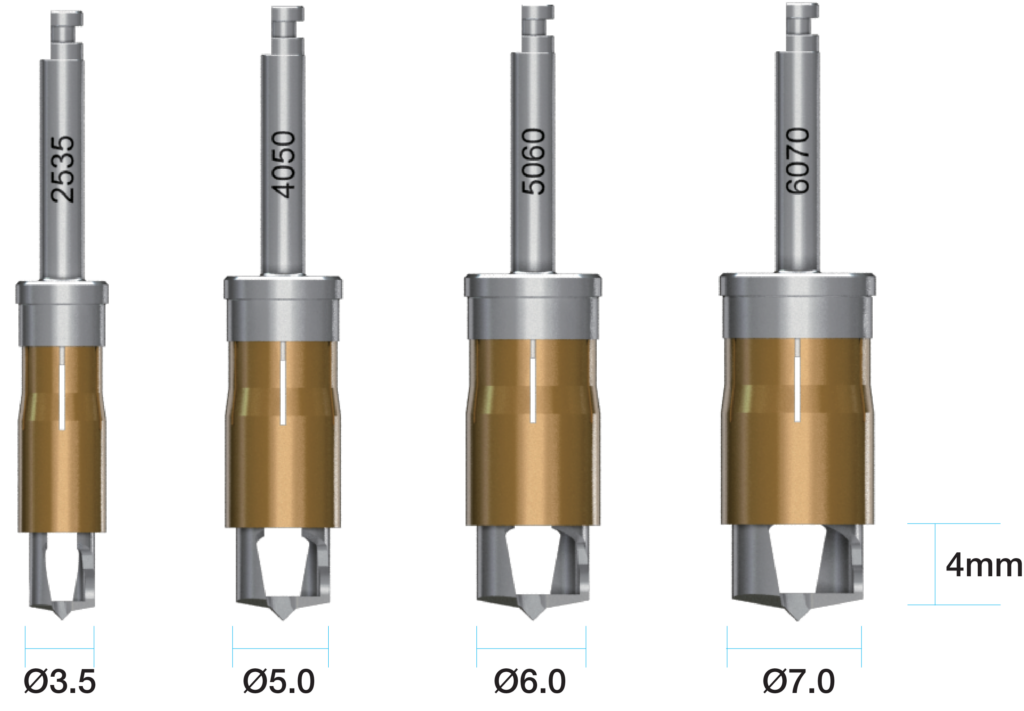

Instruments with a diameter of 5 and 6 mm are the most convenient to use allow you to collect a lot of autobones
